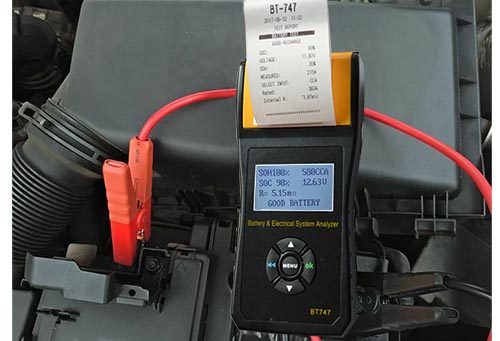

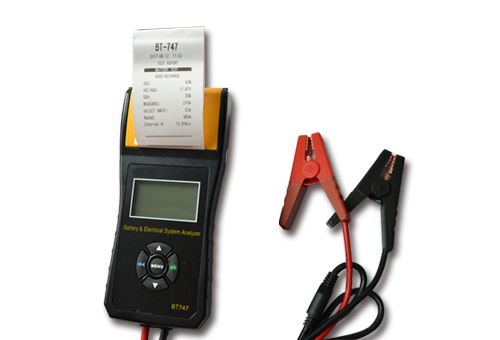

Battery & Electrical System Analyzer BT747 uses advanced conductance technology to easily, quickly and accurately measure the actual cold cranking amps capability of the vehicle starting battery, healthy state of the battery itself, and common fault of the vehicle starting system and charging system.
-Test all automotive cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel battery, etc.
-Suitable 12V batteries and 12V/24V starting & charging systems
-Directly detect battery condition, ok/not ok.
-With integrated printer
-Polarity reverse connection protection
-Temperature compensation
-Support 15 languages
Technical Parameter
1) Measure Range:
CCA 100-2000
BCI 100-2000
CA 100-2000
MCA 100-2000
JIS 26A17--245H52
DIN 100-1400
IEC 100-1400
EN 100-2000
SAE 100-2000
GB 30Ah-220Ah
2) Voltage Measure Range: 7.0-30VDC.
3) Temperature Measure Range: -20°C - +50°C.
Warranty
One year warranty and lifetime maintenance
